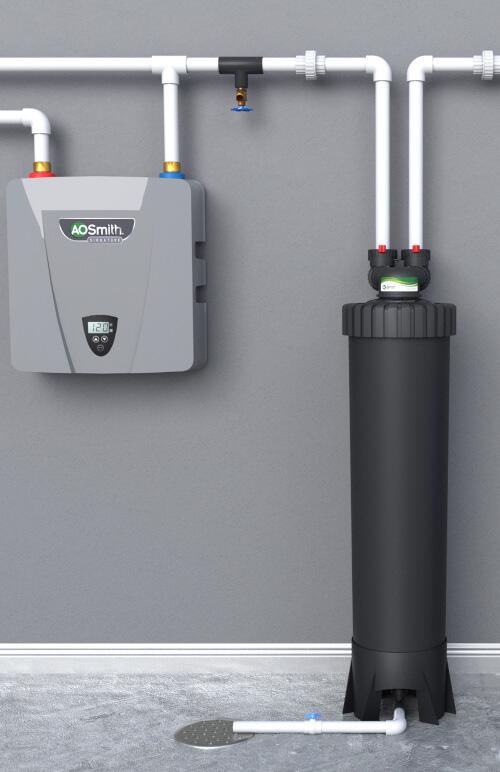

ClearHome Cartridge Filter Housing

Better Water with High-Performance Filter Housing

PreviousNext

Page 1/0

Leave a review for ClearHome!

How was this product?* Select a rating: 5 - BEST 4 3 2 1 - WORST Name: * Email: * Street Address: * City: * State: * Zip Code: * Message: Security: * 3 5 =

The ClearHome™ Housing is a whole-home solution designed to efficiently improve water quality with a durable, user-friendly design. Its simple operation and broad compatibility make it an excellent choice for both homeowners and professionals. Contact your local dealer to see why this is a go-to option for a wide range of filtration needs.

Advanced Filter Housing for Superior Water Quality

ClearHome™ Filter Housings manage sediment, chlorine, taste and odor, and other common water concerns and support various cartridge options, including:

• Carbon Block provides targeted chlorine and chloramine reduction with high-capacity carbon media.
• Double Pleated Depth allows for high flow and sediment capture with a layered pleated design, which maximizes the surface area and filtration performance.
• String Wound / Meltblown are standard depth filters reducing sediment in lower-pressure systems with layered string and meltblown configurations.
• Nano AL to limit impurities with innovative nano-aluminum technology with AG double-pleated media for enhanced filtration performance.

• Technical Specifications

  ClearHome cartridge filter housing features:

  • Large capacity, making it the ideal solution for pre-filtration
  • Durable construction for a longer lifespan
  • Screw-off top and drain fitting to make cartridge replacements easy
  • Bypass valve option for uninterrupted water service
  • Multiple cartridge options available to fit your water quality needs

  ClearHome unit specifications:

  • Rated Flow Rate: 4.8 GPM (standard) / Peak flow up to 8 GPM
  • Rated Capacity: 75,327 gallons (up to 88,000 gallons peak depending on cartridge)
  • Min/Max Temperature: 40°F (4°C) / 110°F (43°C)
  • Min/Max Pressure: 20 psi / 125 psi
  • Cartridge Dimensions
  • Double Pleated Depth Filters: 10" x 5 Micron, 20" x 10 Micron, and 50" x 20 Micron
  • String Wound/Meltblown: 20" x 5 Micron and 50" x 20 Micron
  • Carbon Block Filters: 3 Micron (Standard), 20 Micron, 3 Micron Chloramine Reduction, and 0.5 Micron Contaminant Reduction
  • Nano AL Filters: 20" Nano AL with AG Double Pleated Cartridge
  • Water Source: Municipal or well water
  • Cartridge Types Supported: Carbon Block, Double Pleated Depth, String Wound/Meltblown, Nano AL
  • Pre-Filter Requirement: Optional 5-micron sediment filter recommended (depending on water quality)
  • Installation Position: Downflow (with bypass and drain connection options)
• Installation & Use
  • Designed for municipal or well water systems
  • Works with a 5-micron pre-filter
  • Install after any existing treatment equipment (UV can be installed after)
  • Non-backwashing design - no drain line required
  • Outlet-side drain needed only during startup
• Resources

  Click below to view the supporting material for this product.

  ClearHome™ Manual ClearHome™ Warranty ClearHome™ Sell Sheet
• FAQs:

  Q: What makes the ClearHome filter housing unique?
  A: The ClearHome™ is often chosen for its versatility and high-capacity whole-home filtration. The system supports a range of cartridge options, including carbon block, double pleated depth, string wound/meltblown, and nano filters, targeting sediment, chlorine, chloramine, taste, odor, and other common water concerns. The durable housing, high flow rates (up to 8 GPM), and easy cartridge replacement make this option a durable, long-lasting solution for city and well water.

  Q: Is ClearHome compatible with city and well water?
  A: Yes, the ClearHome™ is compatible with both municipal and well water sources. Your local dealer can help you choose the best option for your water quality needs:

  • Pre-filtration is best for well water, especially if it contains heavy sediment, iron, or other particulates.
  • Water that is unsafe or has an unknown quality should be disinfected before or after the filter.

  Q: What kind of maintenance does the ClearHome filter housing need?
  A: ClearHome™ filter housings are a low-maintenance solution, involving periodic cartridge replacement, typically every 6 to 12 months depending on your water quality and usage, system flushes to remove debris buildup, and checking O-rings and seals during cartridge changes to ensure a proper seal. Also, no electronic or smart monitoring is needed because maintenance is determined by water flow and quality.
