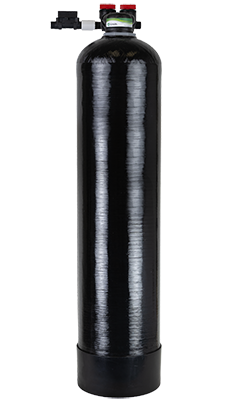

HomeShield™ Whole House Water Filter
Next-Gen Filtration for the Whole Home
The HomeShield™ Whole House Water Filter is a whole-home water filtration system certified to target tough contaminants like PFAS, with internally validated chlorine reduction — delivering cleaner, healthier water from every tap in your home.
Engineered with a patent-pending media blend and anti-channeling technology, HomeShield ensures efficient contaminant reduction and reliable flow, all without a drain line or wasted water. Real-time tracking of water usage, remaining capacity, and flow rate through an intuitive display keeps homeowners informed and in control.
*PFAS substances include: PFNA, PFOA, PFOS, PFHpA, PFHxS.
Key Benefits:
- Certified PFAS Reduction: NSF/ANSI 53 certified to reduce PFOA, PFOS, PFHpA, PFHxS, and PFNA to <4 ng/L for up to 500,000 gallons.
- Improved Taste & Odor: Reduces chlorine for better-tasting water
- No Wastewater, No Drain Line: Eco-conscious, efficient operation saves water and space
- Smart Performance Monitoring: Onboard Performance Indication Device (PID) tracks flow and alerts you when service is needed
- Compact, Space-Saving Design: Single-tank system saves up to 74% more space than competitor units
- Technical Specifications
Technical Specifications:
- Rated Flow Rate: 5.7 GPM
- Dimensions: 15.5" W x 59.5" H
- Min/Max Temperature: 40°F (4° C) / 90°F (32° C)
- Min Pressure/Temperature: 25 psi / 100 psi
- Chlorine Reduction Capacity: Internally validated for 500,000 gallons
- PID Display: Real-time flow rate (gpm), gallons remaining, color-coded alerts
- Installation & Use
- For municipal or well water
- Requires 5-micron pre-filter
- Install after all other treatment equipment (except UV)
- Non-backwashing design means no drain line needed
- Requires a drain on outlet side for startup
- Resources
- FAQs:
Q: What makes Evolve® HomeShield™ unique?
A: HomeShield™ is the only certified system to reduce PFAS to below 4 ng/L for 500,000 gallons. Its single-tank, space-saving design requires no drain line, and its advanced technology delivers up to 216% more capacity than competitive models.
Q: Is HomeShield™ compatible with well water?
A: Yes, it is configurable for both municipal and private well water sources.
Q: How does the system notify me when it needs service?
A: The PID shows real-time gallons remaining and changes color to indicate when service is approaching or needed.
Click Here for More FAQs [PDF]
- Reviews
Ready to Protect Your Water?
Discover how HomeShield™ can transform your home's water quality.
